Product Guide

Wide 90° LED Downlight

Contents hide
1 LED Downlights for Lower Floors
1.1 Feature:
2 Why commercial lighting need to choose KLM Super Downlight series?
3 90° downlight SPECIFICATION
4 75° downlight SPECIFICATION
5 SPECIFICATION

LED Downlights for Lower Floors

For lower floors or general home use, you can choose LED downlights with wider beam angles. The main purpose is to increase the lighting coverage and make the space appear brighter and more spacious.

Feature:

  • 90°
  • 15° 24° 36° 60°
  • And soft lighting at 75°

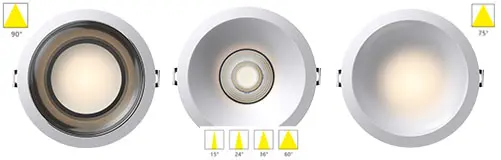

Three recessed downlight reflector designs with wide, narrow and diffused beam options

90-degree LED downlight provides wide lighting coverage, suitable for various occasions:

  • Home spaces: Perfect for living rooms, dining rooms and kitchens, providing even and bright light.
  • Commercial Area: Ideal for retail stores and showrooms, it helps showcase products and attract customers.
  • Office environment: Create a bright atmosphere in offices and conference rooms to improve work efficiency.
  • Public areas: Provide adequate lighting in corridors and stairwells to ensure safety.

These LED downlights are perfect for areas that require a lot of lighting.

Why commercial lighting need to choose KLM Super Downlight series?

  • Same downlight body with 3 different reflectors, application for different lighting designs;

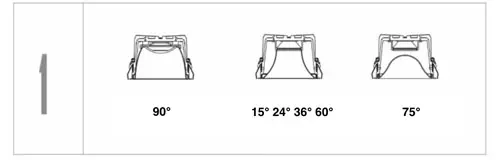

Cross-sections comparing three downlight reflector designs and their beam-angle options
  • Designed for retrofit, no need to re-open the hole, the face ring can be expanded, and the light replacement retrofit solution can be flexibly won;

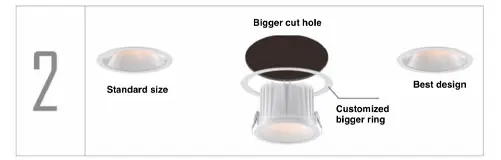

Recessed downlight with an enlarged trim ring covering a larger ceiling cutout
  • A variety of color ring designs make different lighting environments more artistic and interesting;

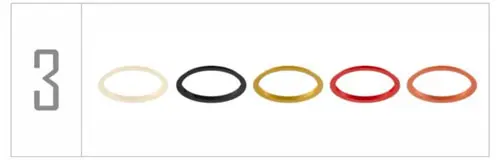

Five downlight trim rings in different colour finishes

90° downlight SPECIFICATION

Item No. Watts Size Specifications
KLM-M-TRH-H70 5/7/10W D77x53mm
Cut hole: 70mm		 Dia-casting aluminium
Beam angle: 90°
LED: CREE
CCT: 2700K~6500K RGBW
CRI90
Voltage: 220VAC
DIM: Yes
KLM-M-TRH-H95 12/15/18W D101x53mm
Cut hole: 95mm
KLM-M-TRH-H130 20/25/30W D137x101mm
Cut hole: 130mm

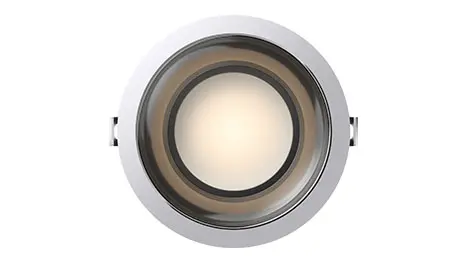

Front view of a round recessed downlight with a reflective inner ring and central diffuser

75° downlight SPECIFICATION

Item No. Watts Size Specifications
KLM-M-TRH-H70 5/7/10W D77x53mm
Cut hole: 70mm		 Dia-casting aluminium
Beam angle: 75°(soft lighting)
LED: CREE
CCT: 2700K~6500K RGBW
CRI90
Voltage: 220VAC
DIM: Yes
KLM-M-TRH-H95 12/15/18W D101x53mm
Cut hole: 95mm
KLM-M-TRH-H130 20/25/30W D137x101mm
Cut hole: 130mm

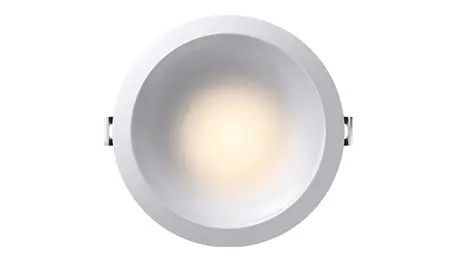

Round recessed downlight with a frosted diffuser and white outer trim

SPECIFICATION

Item No. Watts Size Specifications
KLM-M-TRH-H70 5/7/10W D77x53mm
Cut hole: 70mm		 Dia-casting aluminium
Beam angle: 15° 24° 36° 60°
LED: CREE
CCT: 2700K~6500K
CRI90
Voltage: 220VAC
DIM: Yes
KLM-M-TRH-H95 12/15/18W D101x53mm
Cut hole: 95mm
KLM-M-TRH-H130 20/25/30W D137x101mm
Cut hole: 130mm

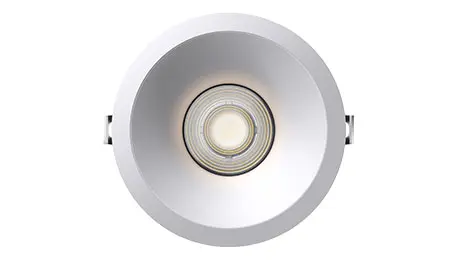

Round recessed downlight with a deep reflector and small central lens
